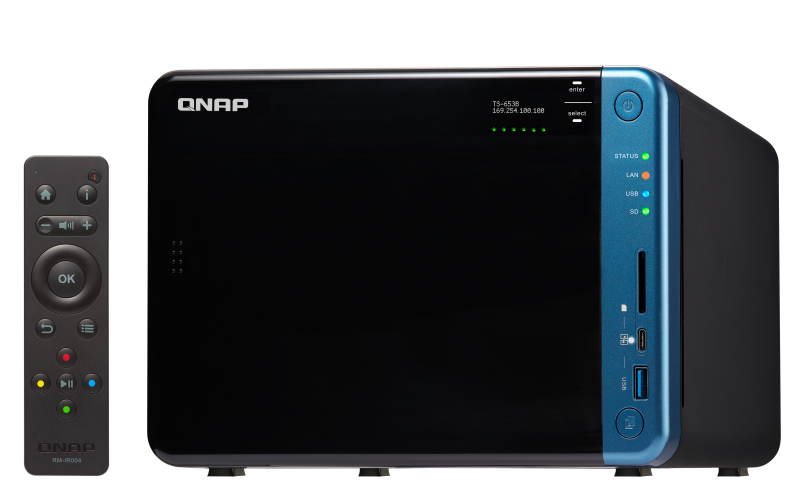

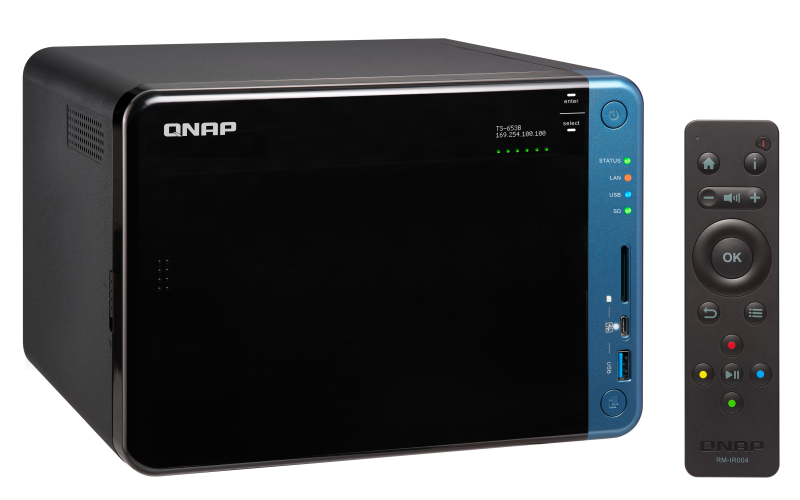

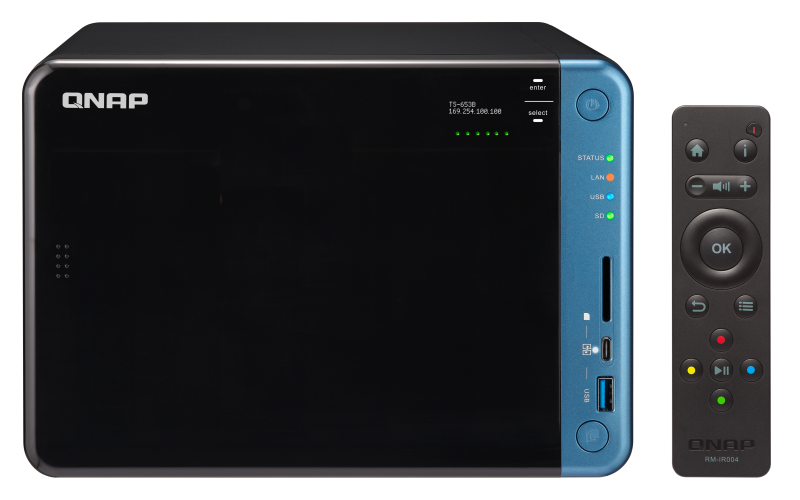

TS-653B

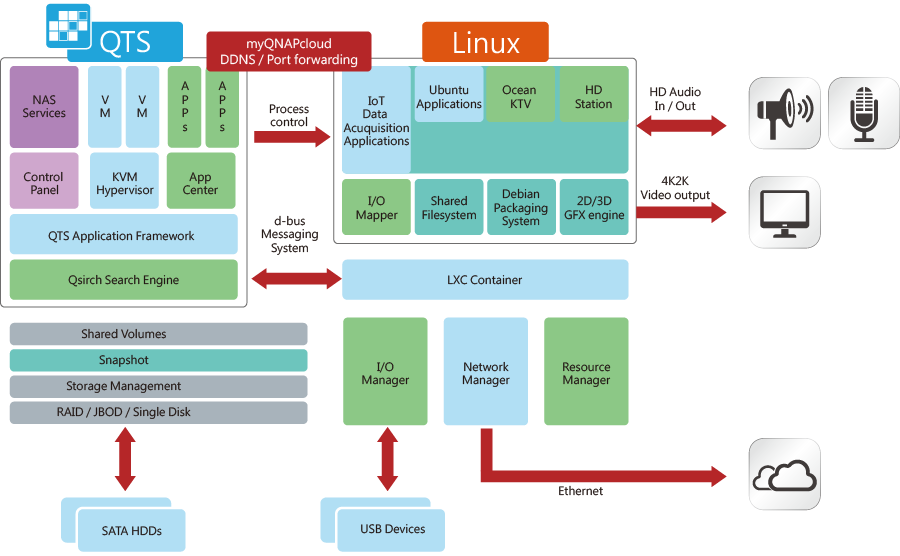

QTS-Linux 双系统 NAS，支持PCIe弹性扩充满足多元储存应用
TS-653B-4G / TS-653B-8G
| 处理器 | Intel® Celeron® J3455 四核心 1.5 GHz 处理器 (可高达 2.3 GHz) |
| 处理器架构 | 64 位 x86 |
| 图形处理器 | Intel® HD Graphics 500 |
| 浮点运算 | 支持 |
| 加密引擎 | (AES-NI) |
| 硬件加速转文件 | 支持 |
| 系统内存 | 4 GB SO-DIMM DDR3L (2 x 2 GB) |
| 内存支持上限 | 4 GB (2 x 2 GB) / 8 GB (2 x 4 GB) |
| 内存插槽 | 2 个 SO-DIMM DDR3L 针对双 DIMM 组态，必须使用成对相同的 DDR3L 模块。 |
| 闪存 | 4 GB（双启动操作系统防护） |

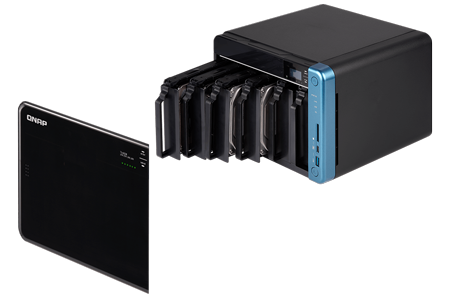

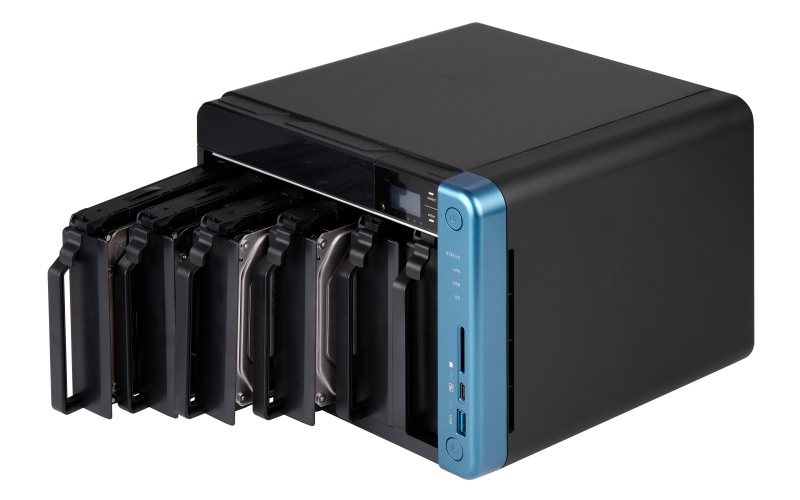

| 硬盘插槽数 | 6 个 3.5 英寸 SATA 6Gb/s、3Gb/s 系统出货不包含硬盘。 如需硬盘兼容性列表，请造访 https://www.qnap.com/compatibility/ |
| 支持硬盘类型 | 3.5 英寸 SATA 硬盘 2.5英寸 SATA 硬盘 2.5 英寸 SATA 固态硬盘 |
| 热插入支援 | 支持 |
| M.2 固态硬盘插槽 | 可选购 PCIe 适配卡扩充 |
| 固态硬盘快取加速支持 | 支持 |

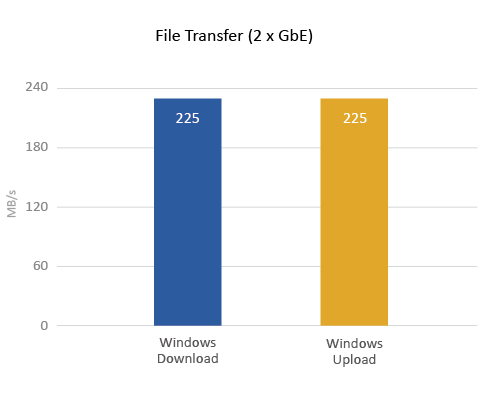

| Gigabit 以太网络端口 (RJ45) | 2 可透过选购 PCIe 适配卡扩充 |

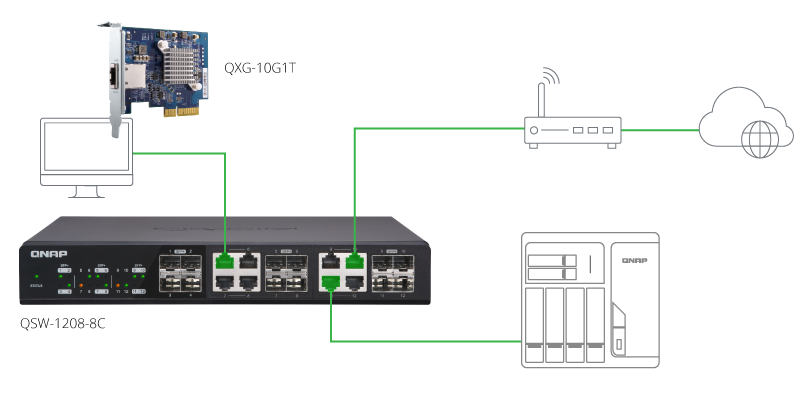

| 10 Gigabit 以太网络端口 | 可选购 PCIe 适配卡扩充 |
| 巨帧封包 | 支持 |

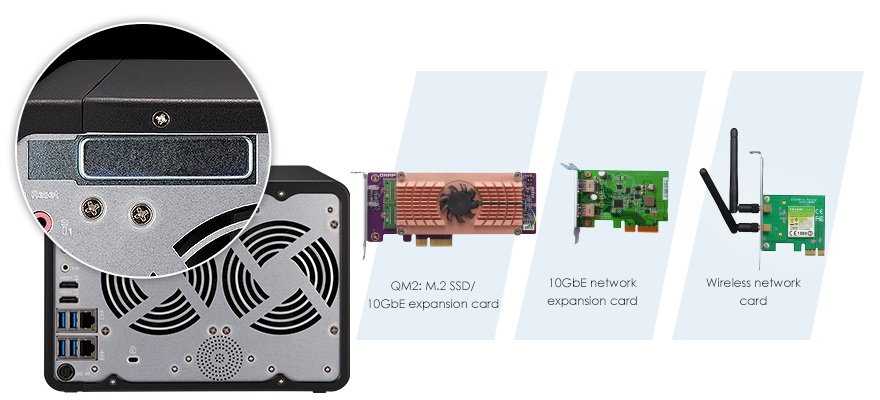

| PCIe 扩展槽 | 1 插槽 1：PCIe Gen 2 x2 PCIe 带宽限制将限制 NAS 10GbE 的效能。 |
| USB 3.2 Gen 1 port | 5 |
| USB 3.2 Gen 2 (10Gbps) Port | 可选购 PCIe 适配卡扩充 |

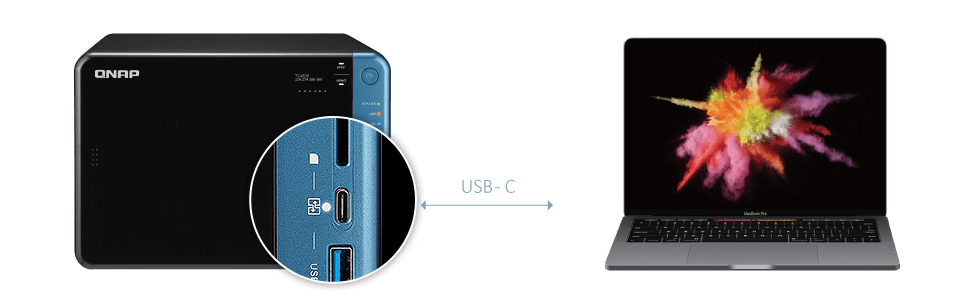

| USB QuickAccess | 1 个 USB 3.2 Gen 1 Type-C |
| SDXC 记忆卡卡片阅读机 | 1 |

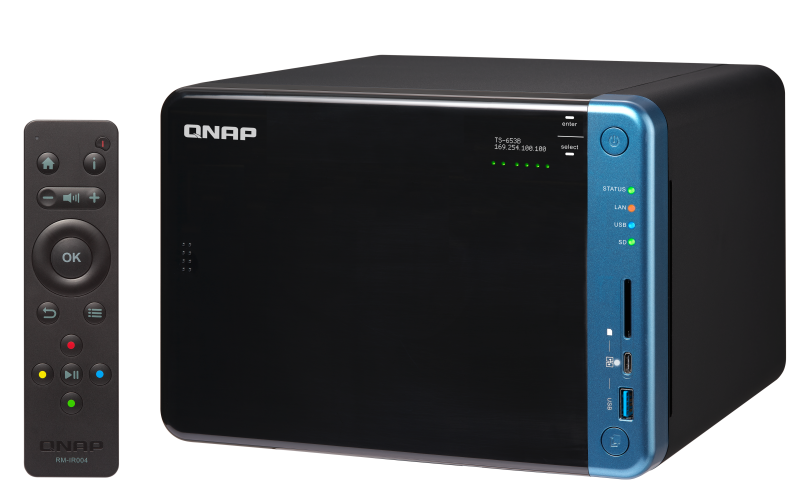

| 红外线 (IR) 接收器 | (RM-IR004、RM-IR002 和 MCE) |
| HDMI 输出 | 2，HDMI v1.4b (可高达 3840 x 2160 @ 30Hz) |
| 音频输入 | 2 个 3.5mm 动圈式麦克风输入插孔 |
| 音频输出 | 1 个内建喇叭，1 个 3.5mm 输出插孔 (供放大器或耳机放大器) |
| 机型 | 桌上型 |
| LED 指示灯 | 电源/状态、网络、USB、硬盘 1-6、SD 卡、USB QuickAccess |

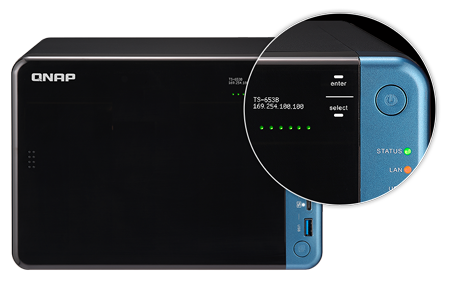

| LCD 显示器/ 按钮 | 搭配电容触控式按键的 OLED |
| 按钮 | 电源、USB 复制、系统重置、电容触控式按键 (选择、输入) |
| 尺寸 (高x宽x深) | 168 × 235 × 226 mm |
| 重量 (净重) | 3.02 kg |
| 重量 (毛重) | 4.63 kg |
| 工作温度 | 0 ~ 40˚C (32˚F ~ 104˚F) |
| 相对湿度 | 5~95% RH (不凝结)，湿球：27˚C (80.6˚F) |
| 电源供应器 | 外接式电源变压器，120W，100-240V |
| 耗电量：硬盘休眠模式 | 20.62 W |
| 耗电量：运作模式，典型值 | 40.33 W |
| 风扇 | 2 x 90mm |
| 噪音值 | 19.6 db(A) |
| 系统警示 | 蜂鸣器 |
| Kensington 安全插槽 | 支持 |
| 同时联机 (CIFS) 数目上限 | 800 |
| Operating System | QTS 5.0.1 |
| Supported Client Operating Systems |
|
| Supported Browsers |
|
| Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
| Storage Pool | |
| SED Storage Pool | |
| Maximum Pool size | 308 TB |
| Maximum number of storage pool | 128 |
| Volume Type | Thick, Thin, Static |
| Maximum volume size | 250 TB Note: At least 4 GB RAM is required. |
| Maximum number of volume | 128 |
| Maximum shared folder size | 250 TB |
| Maximum number of shared folder | 512 |
| JBOD Expansion | |
| VJBOD / VJBOD Cloud | |
| iSCSI Service | |
| Fibre Channel Service | |
| LUN Type | Thick, Thin |
| File-based iSCSI LUN | |
| Block-based iSCSI LUN | |
| Maximum LUN size | 250 TB Note: At least 4 GB RAM is required. |
| Maximum number of targets LUN | 128 |
| LUN feature |
|
| Auto Tiering | Requires minimum 2GB memory. |
| RAID Type |
|
| RAID Group | To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected. |
| RAID Level Migration | |
| RAID Expansion (by adding Disk) | |
| RAID Expansion (by replacing bigger Disks) | |
| Storage Pool Expansion (by adding RAID Group) | |
| RAID Hot Spare | Global, Local |
| RAID Sync/Rebuild/Scrubbing | |
| Internal drive | EXT4 |
| External drive | EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center. |
 |  |  |
| TS-653B | 以太网络线缆 x 2 | 电源线 x 1 |
 |  |  |
| AC 变压器: PWR-ADAPTER-120W-A01 | 十字螺丝 x 18 (适合 2.5 吋硬盘) | 快速安装手册 |
 | ||
| 红外线 (IR) 遥控器: RM-IR004 |
